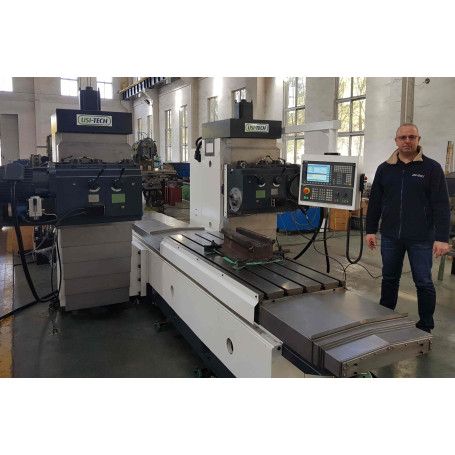

Horizontal double milling machine for fishplate milling

Data sheet

Table size

1800x630mm

Spindle nose to table distance

160-450mm

Spindle center to comumn distance

400mm

Table travel

1800mm

Spindle box travel

290mm

Spindle speed

9 vitesses: 72/100/134/176/234/284/313/ 384/508prm

Spindle taper

ISO50

Max Ø fraise

250mm

Table feeding speed

0-10000mm/min

Spindle motor power

15kw

Milling head fedding motor

5.2kw

Table feeding motor power

7.7kw

Max. table load

2500kg

Machine weight

6500kg
